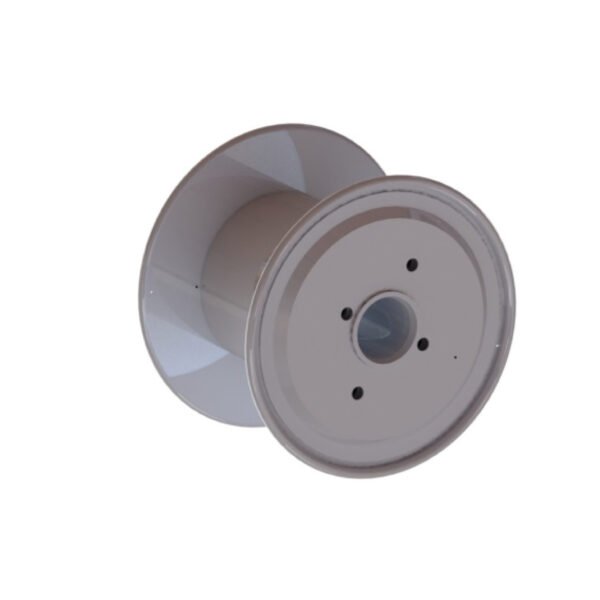

The Single-Wall Bobbin is a spool-like component designed to support and organize wire windings, widely used in electrical and cable applications. With a single layer of walls surrounding the winding area, it provides essential structural support and basic insulation, keeping wires securely in place. Ideal for high-speed single and multi-wire drawing, stranding, and bunching, these bobbins offer an efficient solution for applications where space is limited, providing adequate winding structure without unnecessary bulk. Cost-effective and dynamically balanced, Single-Wall Bobbins are particularly suitable for applications with standard insulation requirements. Available in powder coating, spray painting, or waterproof painting, they deliver reliable performance while meeting various environmental and durability needs.
The Double-Wall Bobbin is a spool-like component specifically designed for electrical applications in the cable industry, providing structural support and organized wire winding. With its dual-layer wall design, this bobbin not only offers robust insulation to keep wires secure but also helps reduce electromagnetic interference between windings—an essential feature for high-precision applications. Ideal for high-speed single and multi-wire drawing, stranding, and bunching, the double-wall structure also aids in dissipating heat, making it particularly suitable for high-power applications by preventing overheating and maintaining optimal performance over extended use. Dynamically balanced for stability, these bobbins are available in powder coating, spray painting, or waterproof painting options to meet various durability and environmental requirements.
• In Application with Limited Space, Single-Wall Bobbins Provide Adequate Winding Structure without unnecessary Bulk.
• Dynamically Balanced
• Single-Wall Bobbins are Cost-Effective to use, especially in Applications with Basic Insulation requirements
• The Double-Wall Structure can Help in reducing Electromagnetic Interference between Windings, which is especially beneficial in Applications that requires High Precision Windings
• Dynamically Balanced
• The additional Wall Helps in dissipating Heat, which is essential in High-Power Applications to prevent overheating and to maintain Optimal Performance over extended Periods
A Single-Wall Bobbin in Electrical Applications is a Spool-like component used to support and Organize wire windings, Particularly in Cable Industry. Its Typically has one Layer of walls Surrounding the Winding Area, Providing basic Structural Support and Insulation to keep the Wires in Place.
A Double-Wall Bobbin in Electrical Applications is a Spool-like component used to support and Organize wire windings, Particularly in Cable Industry. Its Typically has Double Layer of walls Surrounding the Winding Area, Providing basic Structural Support and Insulation to keep the Wires in Place.
1: Powder Coating
2: Spray Painting
3: Water Proof Painting
